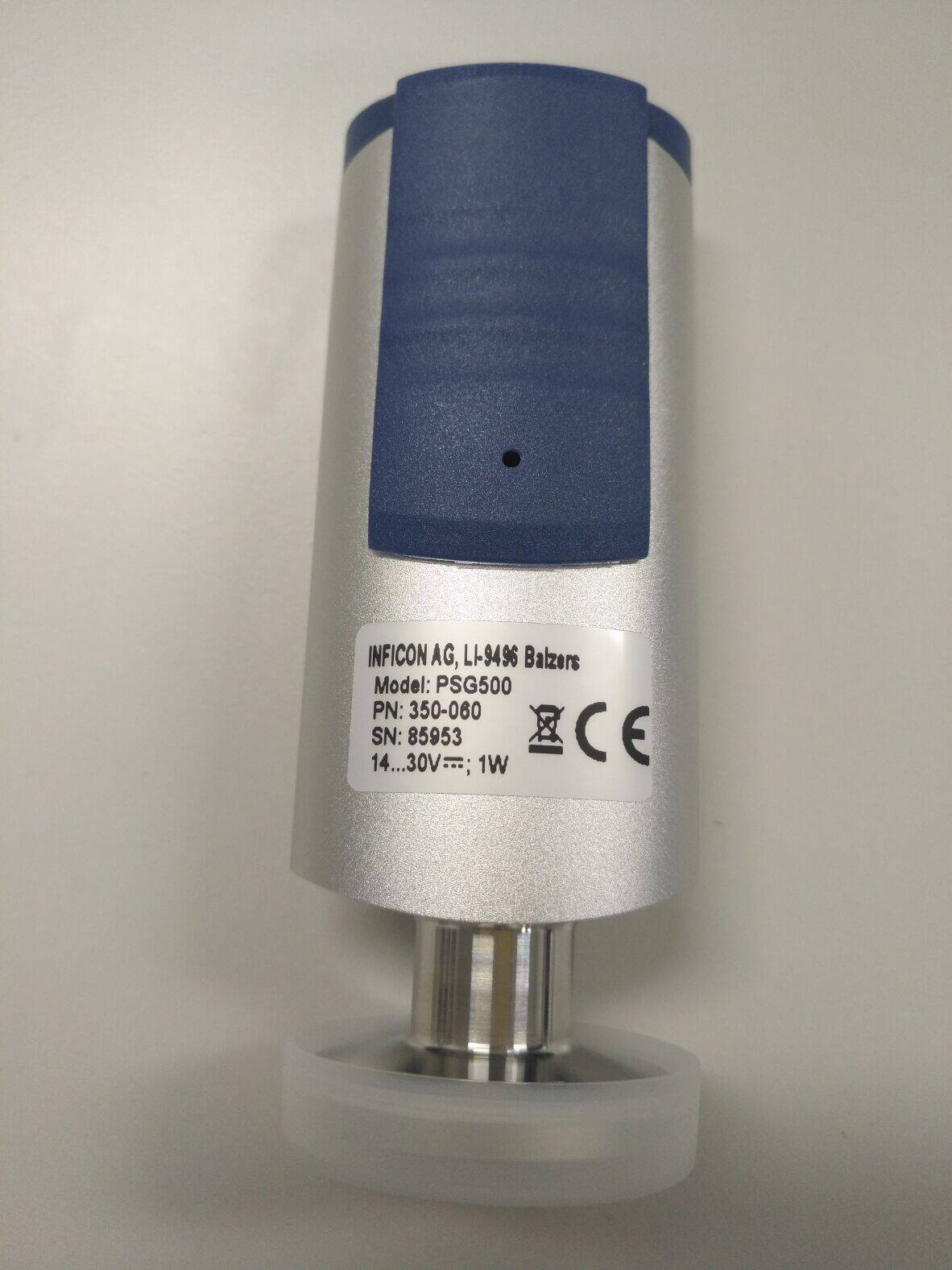

| 类型 | PSG500 tungsten | PSG500-S tungsten, setpoints | PSG502-S nickel, setpoints | PSG510-S tungsten, setpoints, ceramic feedthroughs | PSG512-S nickel, setpoints, ceramic feedthroughs |
|---|
| 测量原则 |
| thermal conductance according to Pirani | thermal conductance according to Pirani | thermal conductance according to Pirani | thermal conductance according to Pirani | thermal conductance according to Pirani |
| 精度 (N2) |
|
|
|
|
|
| 1 x 10-3 … 100 毫巴 | % of reading | ±15% | ±15% | ±15% | ±15% | ±15% |
| 5 x 10-4 … 1 x 10-3 毫巴 | % of reading | ±50% | ±50% | ±50% | ±50% | ±50% |
| 100 … 1000 毫巴 | % of reading | ±50% | ±50% | ±50% | ±50% | ±50% |
| 可重复性（空气） |
|
|
|
|
|
| 1 x 10-3 … 100 毫巴 | % of reading | 2% | 2% | 2% | 2% | 2% |
| 输出信号（测量信号） |
|
|
|
|
|
| 电压范围 | V | 0 … +10.3 | 0 … +10.3 | 0 … +10.3 | 0 … +10.3 | 0 … +10.3 |
| 测量范围 | V | +1.9 … +10.0 | +1.9 … +10.0 | +1.9 … +10.0 | +1.9 … +10.0 | +1.9 … +10.0 |
| 测量范围（空气、O2、CO、N2） | mbar | 5 x 10-4 to 1000 | 5 x 10-4 to 1000 | 5 x 10-4 to 1000 | 5 x 10-4 to 1000 | 5 x 10-4 to 1000 |
| 设定点 |
|
|
|
|
|
| 设定点数量 |
| none | 2 | 2 | 2 | 2 |
| 设置范围 | mbar | ‒ | 2 x 10-3 … 500 | 2 x 10-3 … 500 | 2 x 10-3 … 500 | 2 x 10-3 … 500 |
| 滞后 | % of reading | ‒ | 10% above lower threshold | 10% above lower threshold | 10% above lower threshold | 10% above lower threshold |
| 继电器触点 | V (dc)A (dc) | ‒ | 30 | 30 | 30 | 30 |
| 继电器触点： 转换时间 | ms | ‒ | <20 | <20 | <20 | <20 |
| 电源电压 |
|
|
|
|
|
| 真空计上 | V (dc) | +14 …+30 | +14 …+30 | +14 …+30 | +14 …+30 | +14 …+30 |
| 波纹 | V (p-p) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| 电压与压强 |
| logarithmic 1.286 Volts per decade | logarithmic 1.286 Volts per decade | logarithmic 1.286 Volts per decade | logarithmic 1.286 Volts per decade | logarithmic 1.286 Volts per decade |
| 内部容积 |
|
|
|
|
|
| DN 16 ISO-KF，DN 16 CF-R，7/16-20 UNF | cm³ (in.³) | 1.5 (0.092) | 1.5 (0.092) | 1.5 (0.092) | 1.5 (0.092) | 1.5 (0.092) |
| DN 16 ISO-KF & DN 16 CF-R 长管 | cm³ (in.³) | 10 (0.61) | 10 (0.61) | 10 (0.61) | 10 (0.61) | 10 (0.61) |
| 1/8'' NPT，4 VCR，8 VCR，1/2'' 管 | cm³ (in.³) | 2 (0.122) | 2 (0.122) | 2 (0.122) | 2 (0.122) | 2 (0.122) |
| 容许温度 |
|
|
|
|
|
| 运行 | °C | +5 … +60 | +5 … +60 | +5 … +60 | +5 … +60 | +5 … +60 |
| 真空连接 (1) | °C | 80 / 250 (2) | 80 / 250 (2) | 80 / 250 (2) | 80 / 250 (2) | 80 / 250 (2) |
| 贮存 | °C | -20 … +65 | -20 … +65 | -20 … +65 | -20 … +65 | -20 … +65 |
| 重量 |
|
|
|
|
|
| DN 16 ISO-KF，7/16-20 UNF | g | 80 | 80 | 80 | 80 | 80 |
| DN 16 CF-R，4 VCR | g | 100 | 100 | 100 | 100 | 100 |
| 1/8'' NPT，1/2'' 管 | g | 70 | 70 | 70 | 70 | 70 |
| 8 VCR，DN 16 ISO-KF 长管 | g | 130 | 130 | 130 | 130 | 130 |
| DN 16 CF-R 长管 | g | 140 | 140 | 140 | 140 | 140 |
| 错误信号 | V | 0 … +0.5 (filament rupture) | 0 … +0.5 (filament rupture) | 0 … +0.5 (filament rupture) | 0 … +0.5 (filament rupture) | 0 … +0.5 (filament rupture) |
| 输出电阻 | Ω | 2 x 4.7 | 2 x 4.7 | 2 x 4.7 | 2 x 4.7 | 2 x 4.7 |
| 最小负载电阻 | kΩ | 10, short-circuit proof | 10, short-circuit proof | 10, short-circuit proof | 10, short-circuit proof | 10, short-circuit proof |
| 反应时间 | ms | 80 | 80 | 80 | 80 | 80 |
| 真空计识别 | kΩ | 27.0, referenced to supply common | 27.0, referenced to supply common | 27.0, referenced to supply common | 27.0, referenced to supply common | 27.0, referenced to supply common |
| 调整 |
| one tactile switch for ATM and HV adjustment | one tactile switch for ATM and HV adjustment | one tactile switch for ATM and HV adjustment | one tactile switch for ATM and HV adjustment | one tactile switch for ATM and HV adjustment |
| 电流消耗 | mA | <500 (max. starting current) | <500 (max. starting current) | <500 (max. starting current) | <500 (max. starting current) | <500 (max. starting current) |
| 功耗 | W | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| 电气连接 |
| FCC 68 / RJ45 appliance connector, 8 poles, male | FCC 68 / RJ45 appliance connector, 8 poles, male | FCC 68 / RJ45 appliance connector, 8 poles, male | FCC 68 / RJ45 appliance connector, 8 poles, male | FCC 68 / RJ45 appliance connector, 8 poles, male |
| 传感器电缆 |
| 8 poles plus shielding | 8 poles plus shielding | 8 poles plus shielding | 8 poles plus shielding | 8 poles plus shielding |
| 电缆长度 | m | ≤100 (8 x 0.14 mm2) | ≤100 (8 x 0.14 mm2) | ≤100 (8 x 0.14 mm2) | ≤100 (8 x 0.14 mm2) | ≤100 (8 x 0.14 mm2) |
| 暴露于真空的材料 |
| glass, Ni, NiFe, DIN 1.4301 / 1.4305 / 1.4435 | glass, Ni, NiFe, DIN 1.4301 / 1.4305 / 1.4435 | glass, Ni, NiFe, DIN 1.4301 / 1.4305 / 1.4435 | AI2O3, Ni, DIN 1.3981 / 1.4305 / 1.4435 | AI2O3, Ni, DIN 1.3981 / 1.4305 / 1.4435 |
| 单丝 |
| W | W | Ni | W | Ni |
| 容许压力 | bar (absolute) | 10, limited to inert gases | 10, limited to inert gases | 10, limited to inert gases | 10, limited to inert gases | 10, limited to inert gases |
| 安装定位 |
| any | any | any | any | any |
| 保护等级 |
| IP40 | IP40 | IP40 | IP40 | IP40 |
